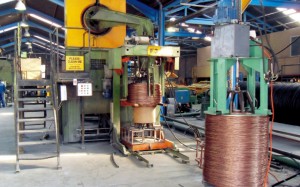

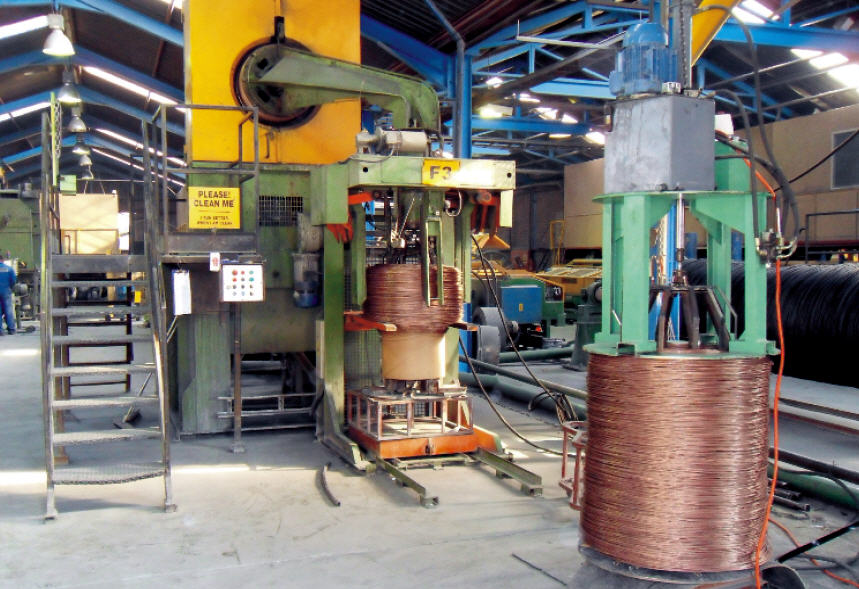

Our modern wire drawing equipment is designed to draw bedding and seating wire to the exacting requirements of the latest high speed coil formers.
Wire Supplies bedding and seating wire is approved internationally by premium manufacturers for use in bonnel, pocket and LFK configurations.
Size Range:
All diameters from 1.2mm to 5.0mm
Tensile Strength:
Up to 2100 MPa
Coating:

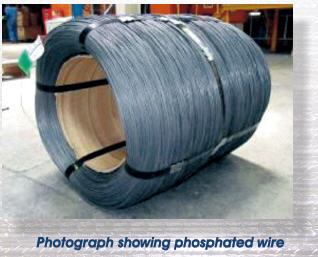

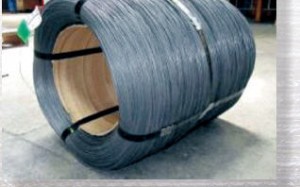

Copper washed or phosphated
Packaging:
Supplied on cardboard cores up to 1200kg. Plactic wrapped for corrosion protection.

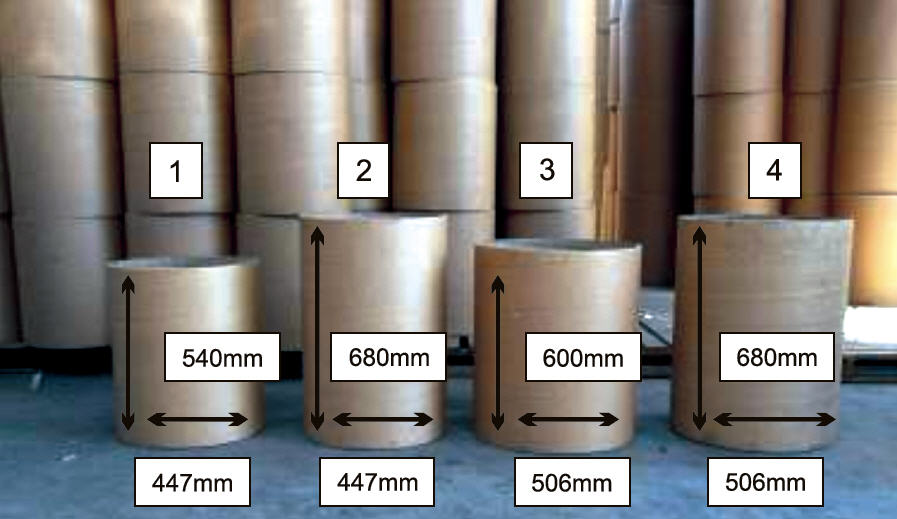

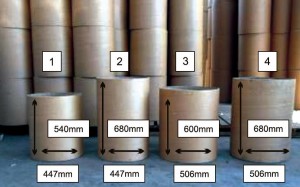

Core 1: Wire diameter: 1.2mm – 4.8mm, mass 500 – 800kg
Core 2: Wire diameter: 1.2mm – 4.8mm , mass 650- 800kg
Core 3: Wire diameter: 1.8mm – 4.3mm , mass 800 – 950kg
Core 4: Wire diameter: 1.8mm – 4.3mm , mass 800 – 1200kg
After wire drawing, all coils are tested and may on customer request be plastic wrapped prior to dispatch.
